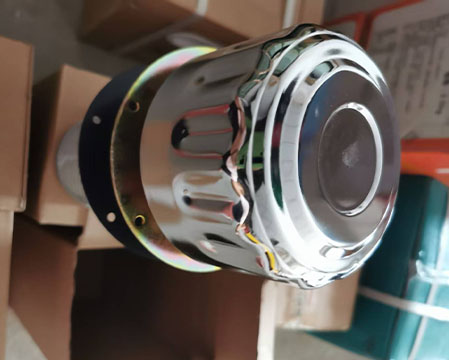

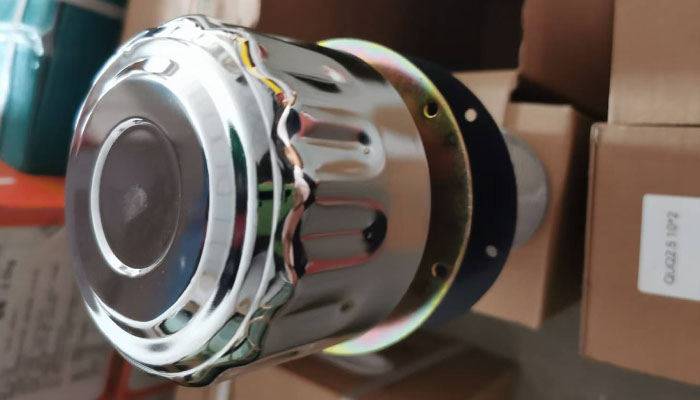

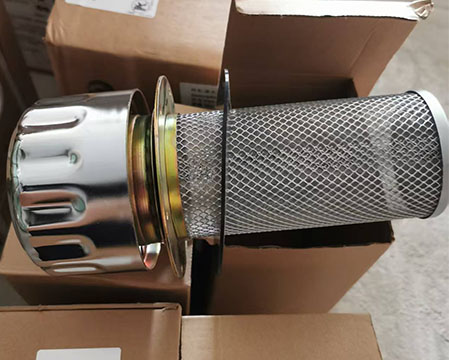

Leemin Air Breather Filter QUQ2.5

Description

Structural & Performance Features:

1. Dual-function Integration: Combines air filtration and oil filling filtration in one unit, balancing tank pressure and blocking dust contamination.

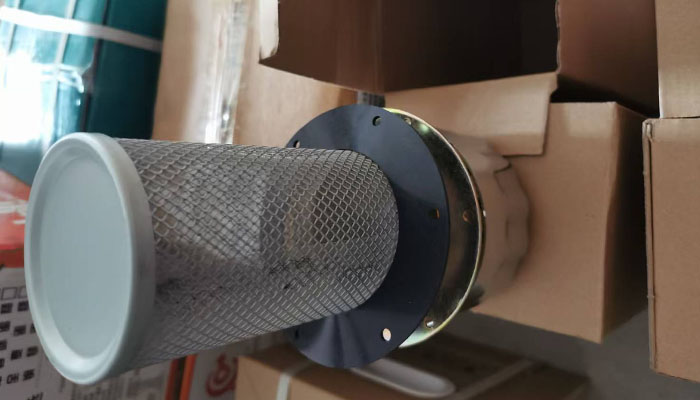

2. High-efficiency Filter Material: Adopts premium glass fiber filter element, ensuring stable filtration performance and supporting cleaning or replacement.

3. Compact & Durable Design: Space-saving structure with reliable sealing, compatible with standard tank interfaces for easy installation.

4. Series Derivatives: QUQ2.5A/B models are thread-mounted versions, suitable for tanks with different opening types.

Order & Replacement:

1. Common Models: QUQ2.5-10×1.0, QUQ2.5-20×2.0, QUQ2.5-40×3.0.

2. Replacement Reference: Directly replaces EF series and other imported breather filters of the same specification.

Installation & Maintenance:

1. Installation: Drill holes on the tank top, fix with flange bolts and ensure tight sealing to avoid air leakage.

2. Maintenance: Regularly check the filter element pressure difference; clean or replace the glass fiber filter element as needed. The oil screen can be disassembled and cleaned for continuous use.
