Donaldson Fuel Water Separator Filter P551424
Donaldson Fuel Water Separator Filter P551424

Donaldson Fuel Water Separator Filter P551424

Donaldson Fuel Water Separator P551424 is a high-precision cartridge filter with 99% efficiency at 4μm and 95% water separation.
Dimensions(mm):
Outer Diameter: 80 mm (3.15 in)
Inner Diameter (core): 23 mm
Weight: 0.36 kg (0.85 lb)

Product Type: Cartridge-type fuel water separator, designed for on-road/off-road engines
Model Number: P551424
Flow Rate: 150 LPH (40 GPH)
Primary Application: Fits Perkins, John Deere, CAT, Liebherr; replaces OEM 26560143 (Perkins), RE503198 (John Deere)

Description

Dimension Details:

1. Outer Diameter: 80 mm (3.15 in)

2. Total Length: 154 mm (6.07 in)

3. Inner Diameter (core): 23 mm; Net Height: 150 mm

4. Seal: Top/bottom diameter 78 mm; Thickness 5 mm (standard for cartridge filters)

Performance & Features:

1. Filtration Precision: 99% @ 4μm; 95% water separation (emulsified)

2. Media Advantage: Synteq composite for high dirt-holding capacity and corrosion resistance

3. Maintenance: Cartridge-style, no special tools; drain water via bowl valve

Cross-Reference:

1. Baldwin: BF7674D, BF7905D, BF7952D

2. Fleetguard: FS19572, FS19832, FS19840

3. John Deere: RE503198, RE522868

Hot Sales Filters
Cars oil filter and fuel filters:

23390-OL041

23303-64010

90915-YZZE1

90915-YZZD4

15600-41010

90915-30002

MZ690115

A0001802609

A2711800109

A6111800009

A6421800009

A6511800109

030115561AB

06D 115 562

1J0201511A

06J 115 403Q

03L 115 562

11428092620

6511800009

26320-27400

06E115562A

11428575211

11427508969

06D115466

LR011279

31372212

263202F000

04152YZZA1

1332241303

6420906452

1J0201511A

WJ1500040

30636704

263202F000

04152YZZA1

Cars air filters and cabin filters：

1F0129620

058133843

1J0 129 620 A

8K0133843E

1K0 129 620D

1780125020

1780128030

1780131090

96314494

281133E500

281133S100

165464BA1A

7711228912

6431913216

30630754

27891BM401KE

1K1819635B

6447AZ

6808607

80292SDCA01

Trucks oil filters/fuel filters/air filters/hydraulic filter：

P559000

P551423

P552096

P953329

P553191

P165569

P551779

P777868

P553200

P645114

P550425

P608766

LF667

FF185

LF3000

LF9009

LF9080

WF2075

FS20071

LF14000NN

WK842/2

EF1802

H12110/2

SF1307

WK1040

C1515

FC1203

A6020M

1R-0716

1R-1808

1R-0749

1R-0750

1R-0739

1R-0755

51-7951

Product Pictures

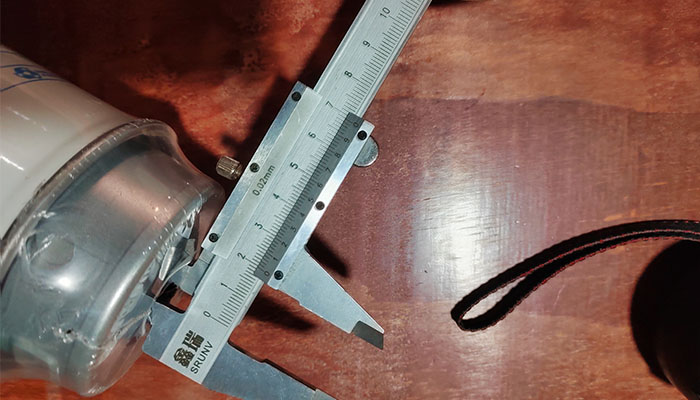

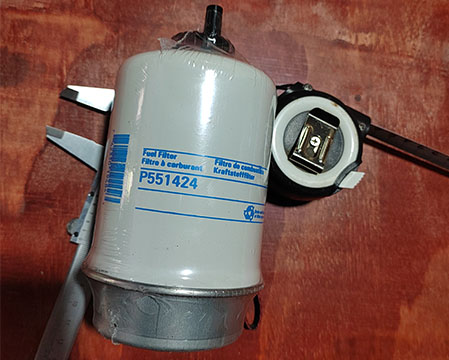

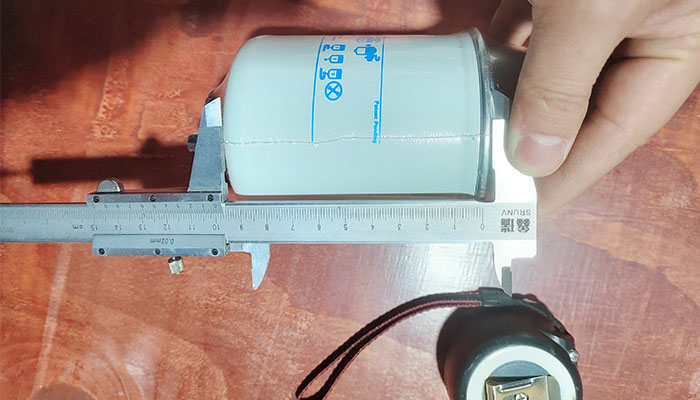

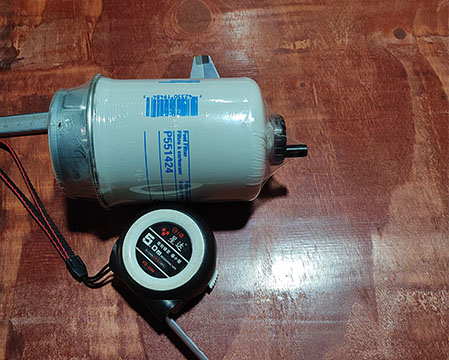

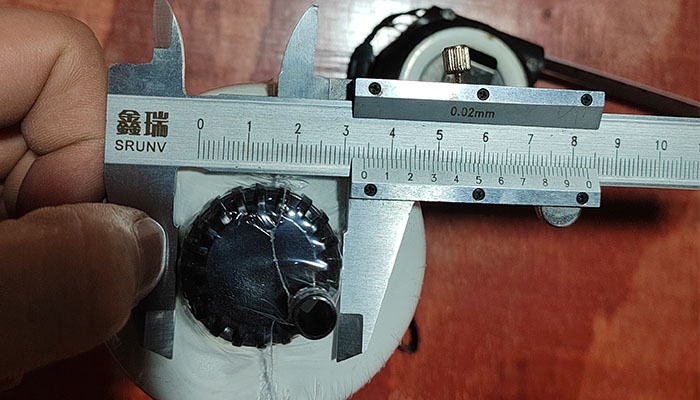

Donaldson Water Separator Fuel Filter P551424 Donaldson Water Separator Fuel Filter P551424 Donaldson Water Separator Fuel Filter P551424
